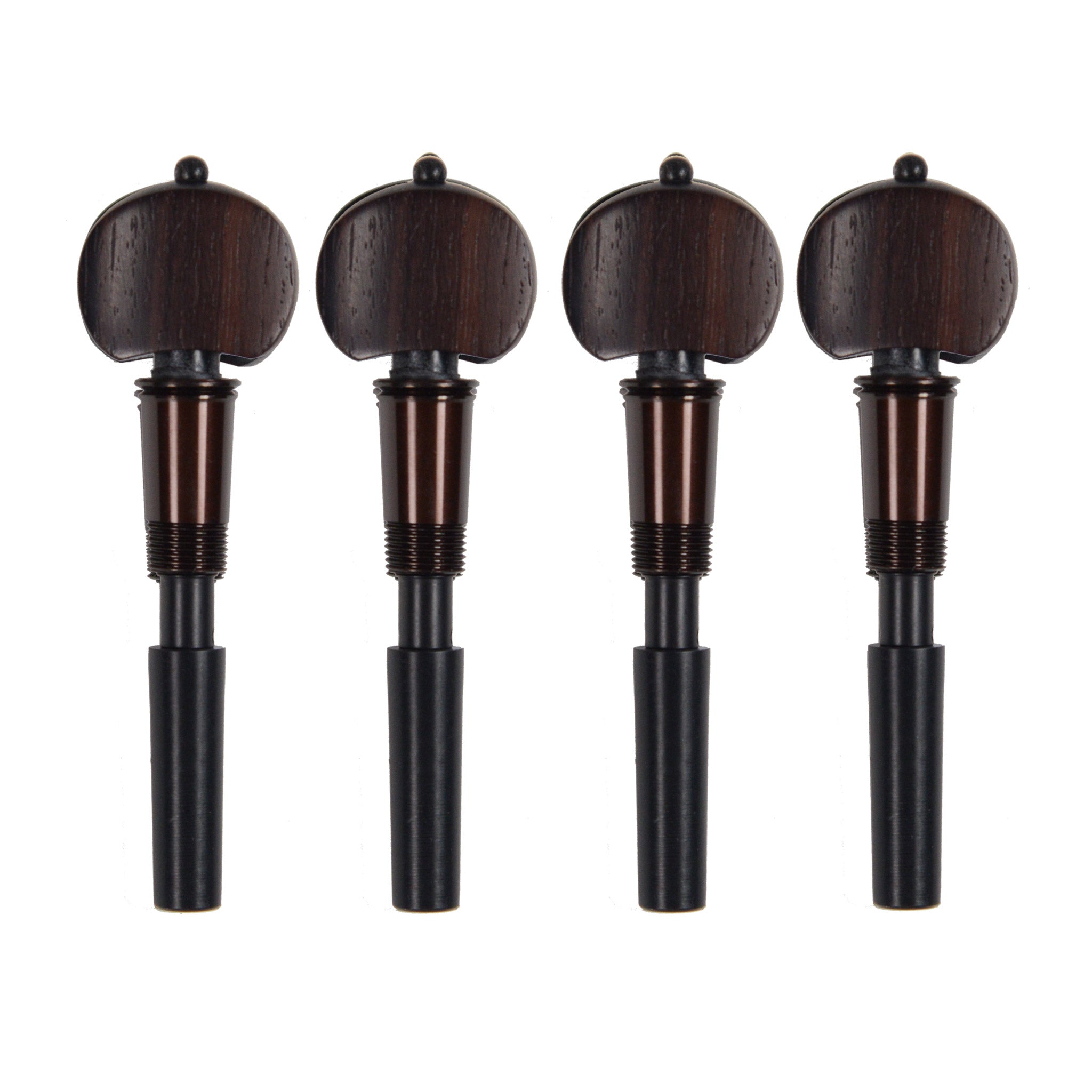

Perfection Planetary Geared Viola Peg Set

Knilling's Perfection Planetary Geared Peg is an innovative tuning peg providing a fine tune and “non-slip” solution for your violin, viola or cello. The 4:1 gear reduction gives the Perfection peg the precision to act as its own finetuner.

Perfection peg operation

Turning the head of a Perfection peg rotates its main central sun gear. Three planet gears are held between the sun gear and an outer ring gear. As the sun gear turns the planet gears orbit around it. The motion of the planet gears rotates the shaft, which then takes up the string. The shaft turns once for every four turns of the head. The 4:1 gear reduction gives the Perfection peg the precision to act as its own finetuner.

When tuning: pressing the head of a Perfection peg inwards as you turn it stiffens the action in a gradual and crontrollable way, and this allows the peg to hold the string at tension. Like applying the brakes of a car or a bicycle: as you press the brakes you gradually slow down, come to a stop and then are locked in position by the brakes. The reverse happens when the peg head is gently pulled outward as it is turned: the action of the peg is released, becomes softer and the string is able to unwind.

To get a feel for how the pegs work: for each peg, back the peg off a couple of turns to release the string tension and several times work the head backwards and forwards a half turn each way as you applay a gentle inward pressure to the head. Do the same thing while gently pulling outwards on the head. As you try this you quickly discover how to adjust the peg for ease of turning and optimal hold. In practice, you find a setting that works for you and tend to leave it at that point.

If at some stage you find that the string is not holding, gently apply more inward pressure as you turn and this will firm the action. Conversely, if the peg becomes difficult to turn, gently pull the peg head away from the peg box as you turn and you will feel the action become easier.

Technical Specification

Shape, weight & taper

Perfection pegs have a standard taper and fit in the same holes as standard wooden friction pegs. They have the same shape, weight and taper as a set of good ebony pegs.

Heads

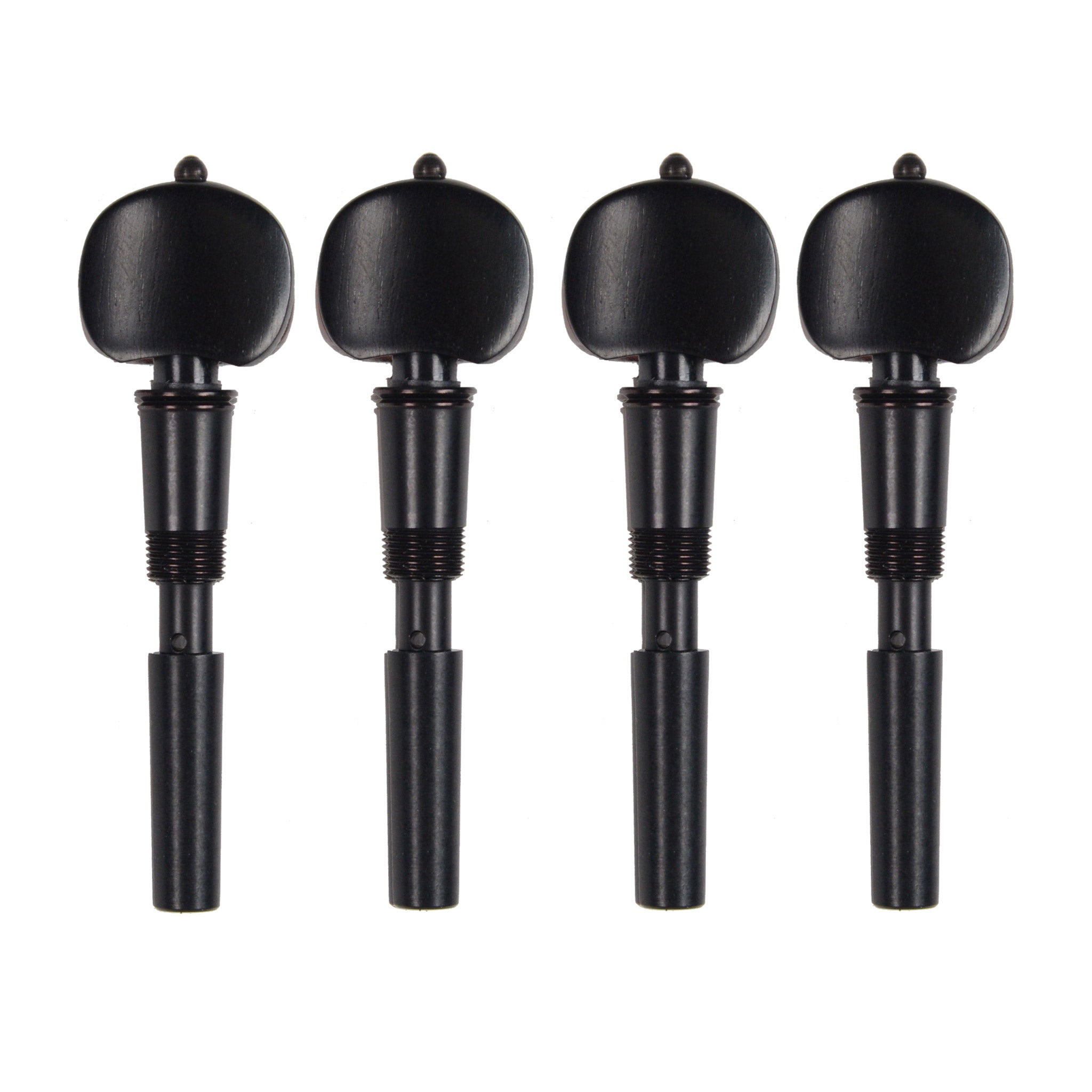

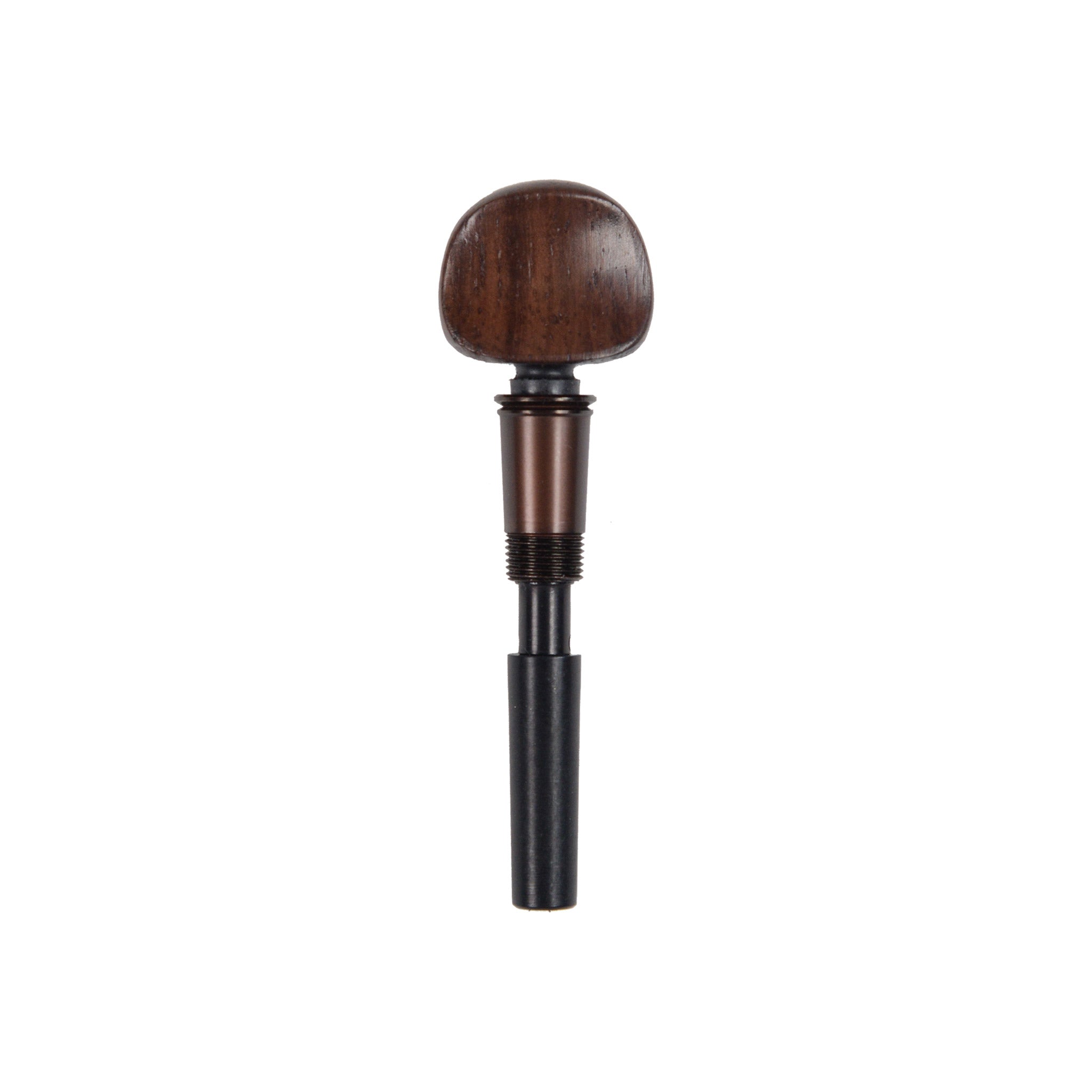

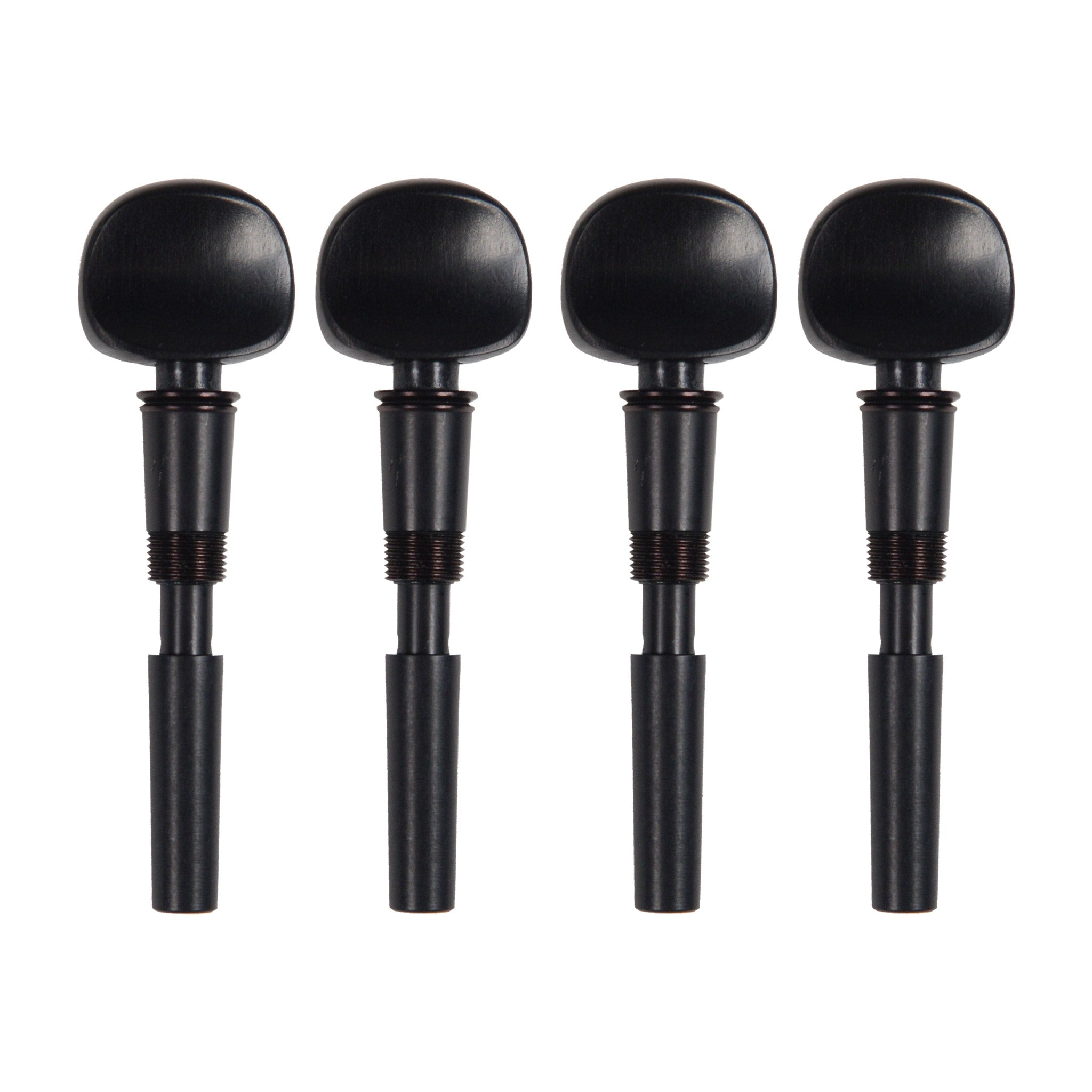

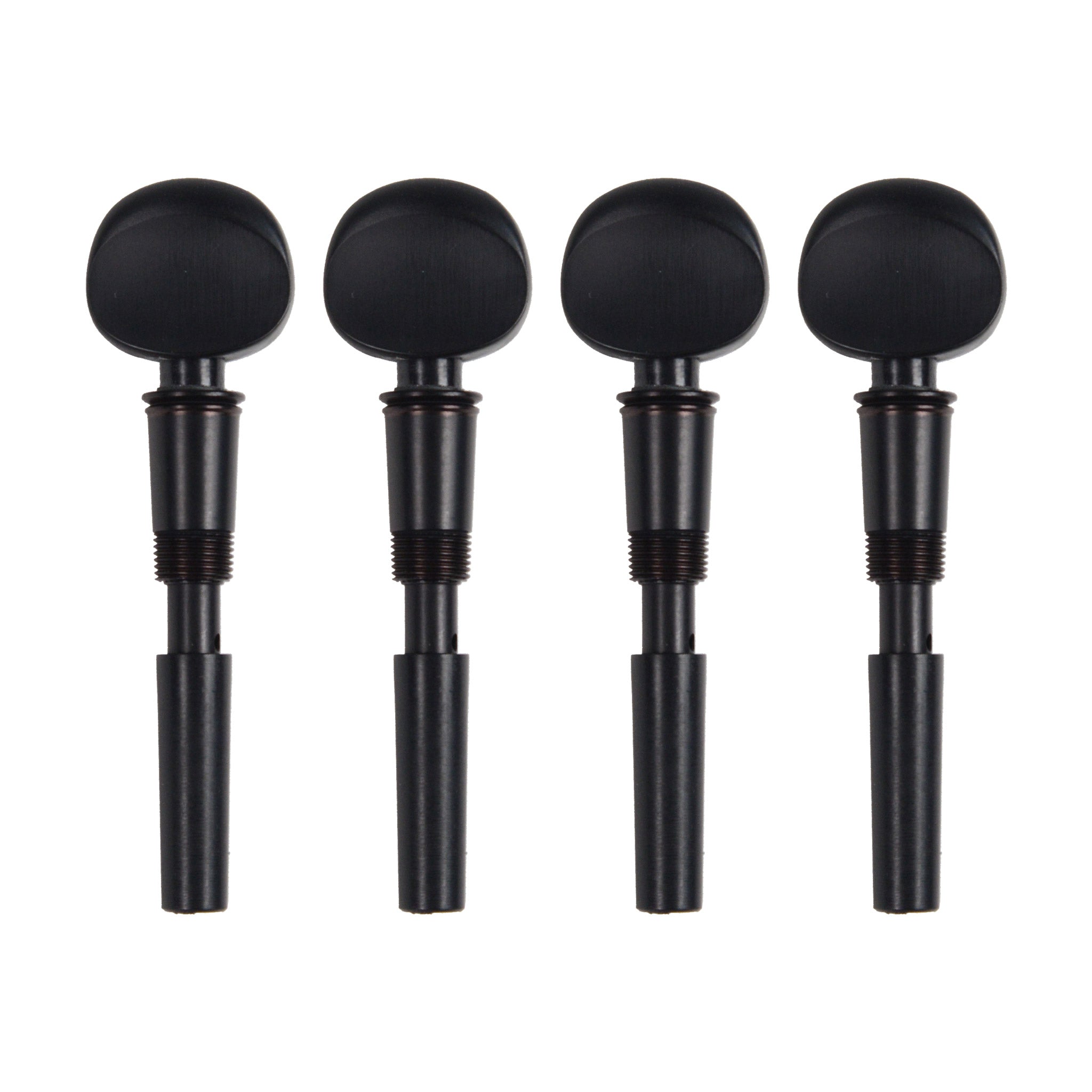

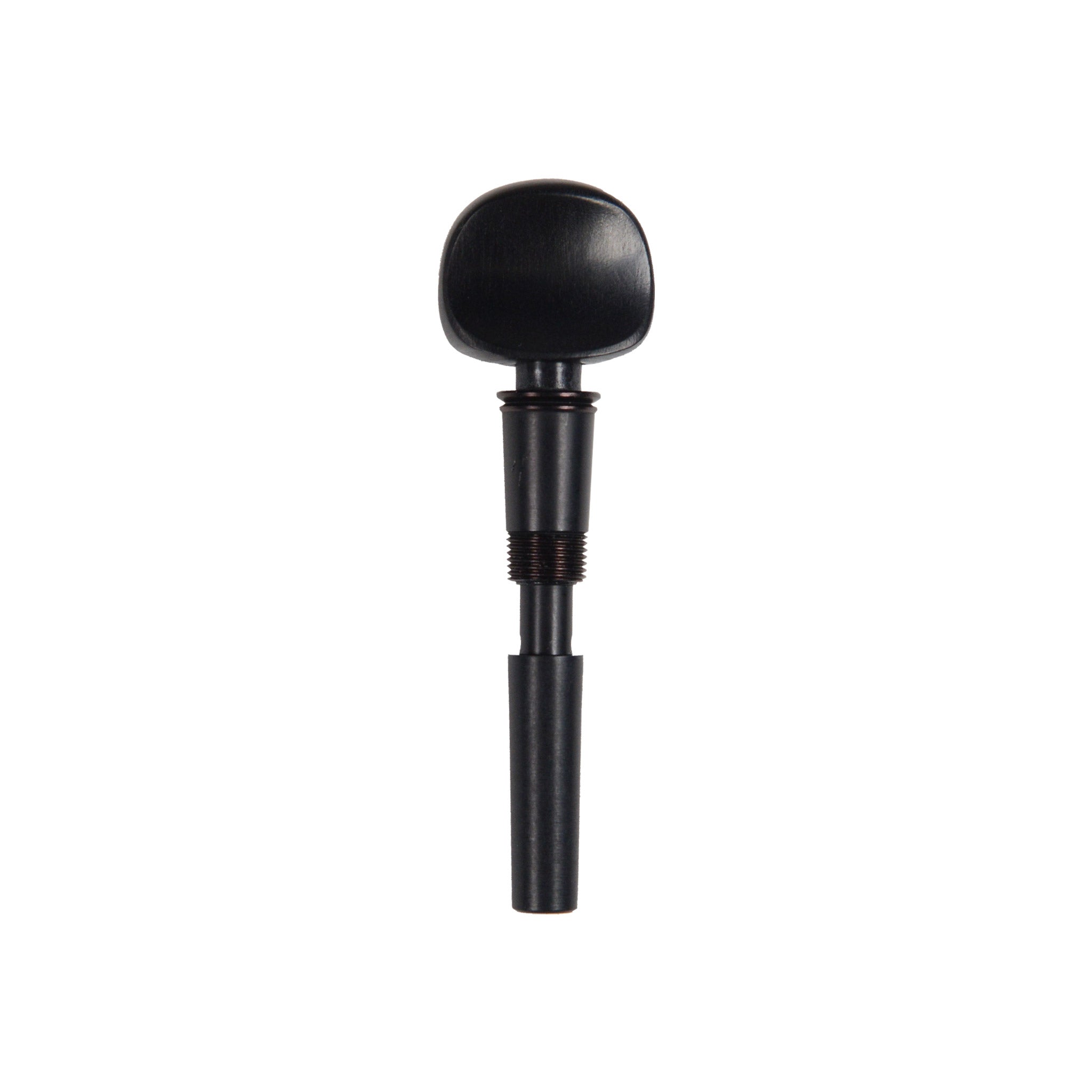

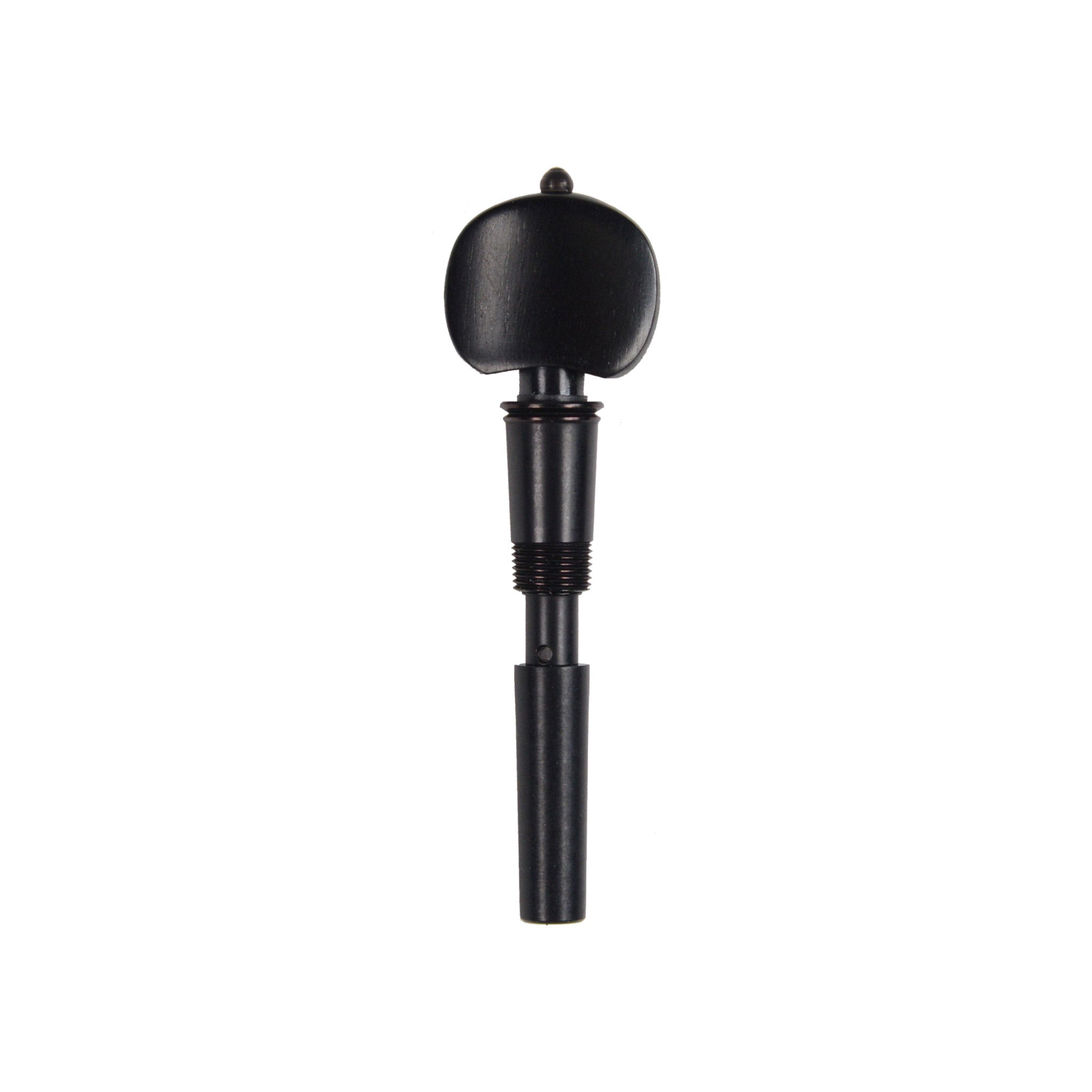

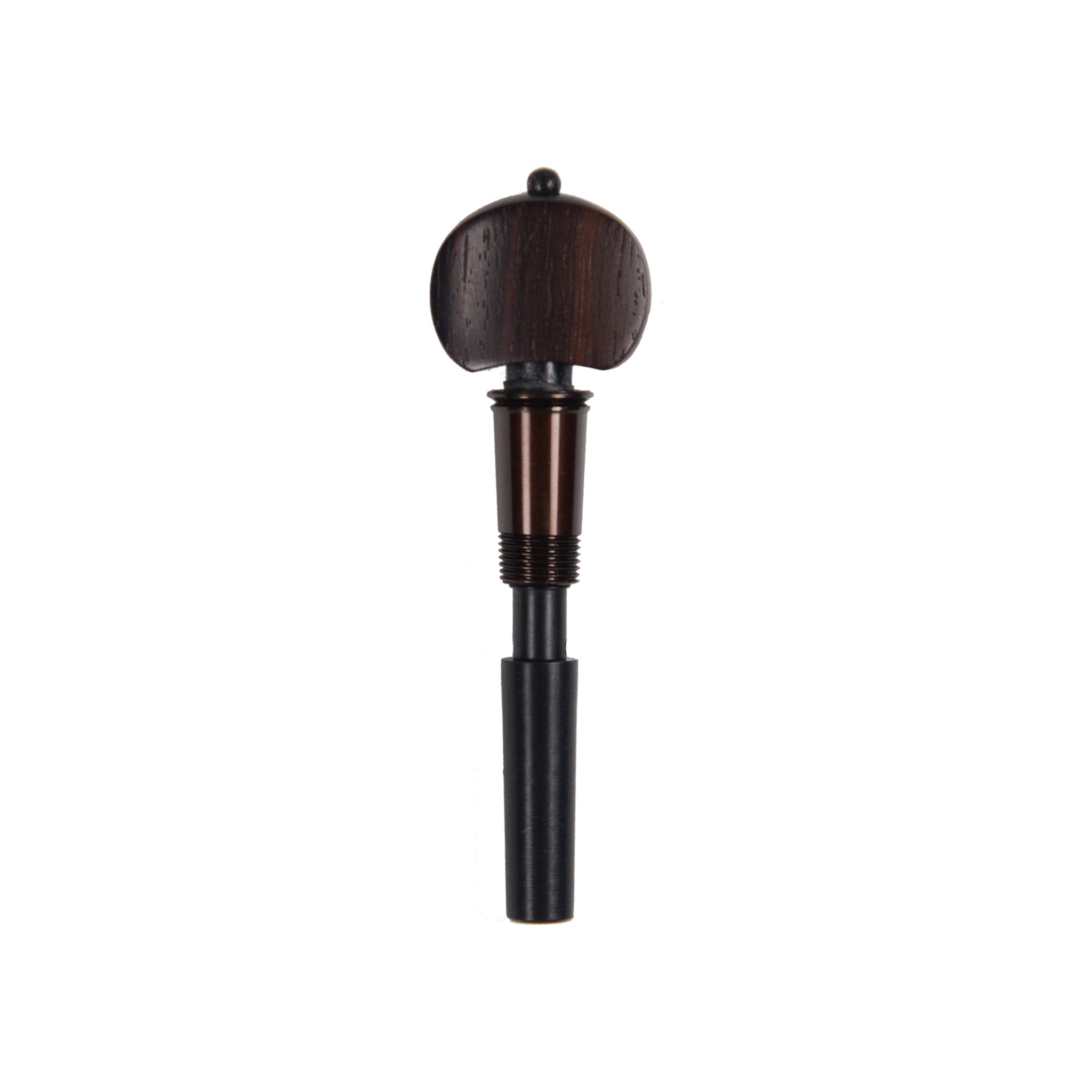

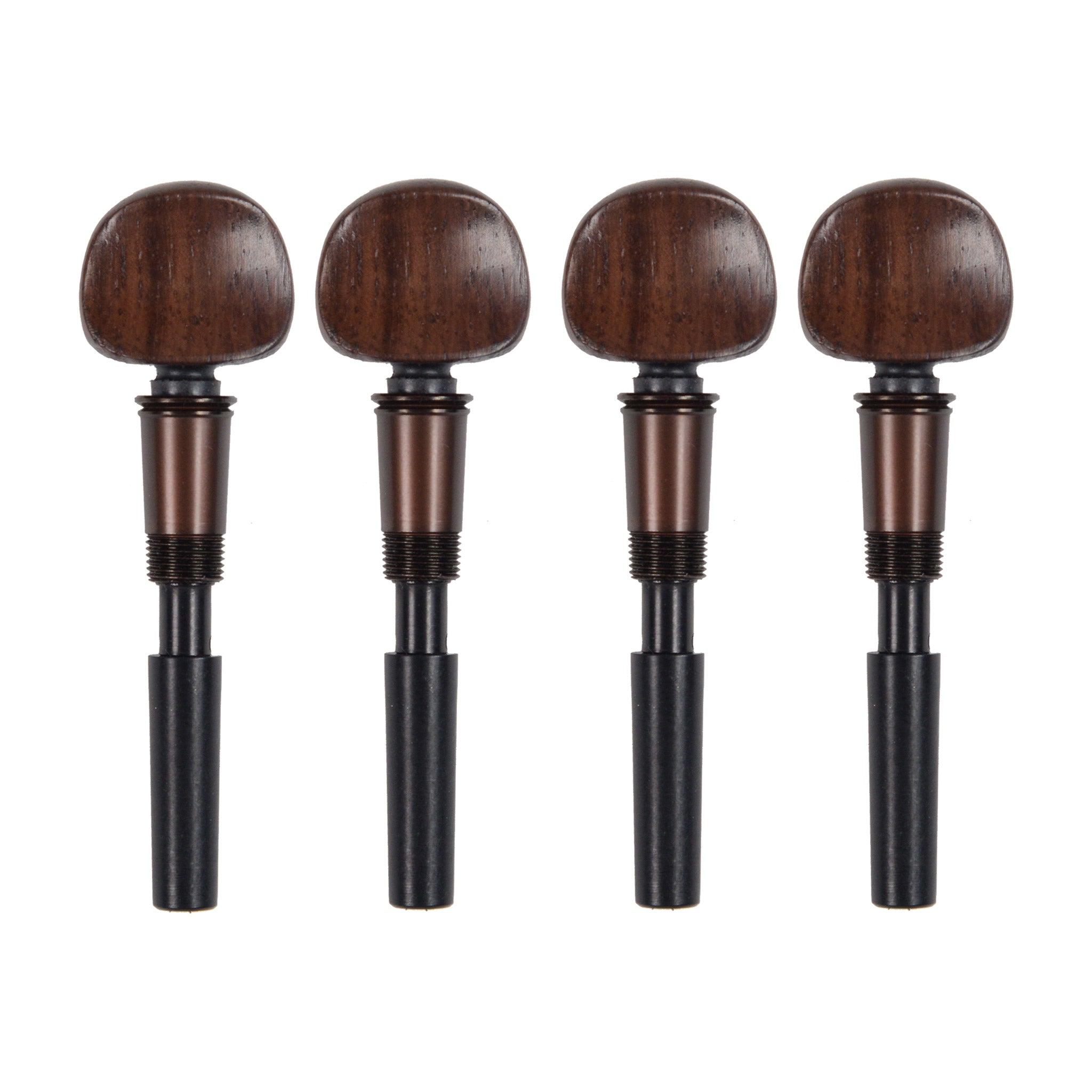

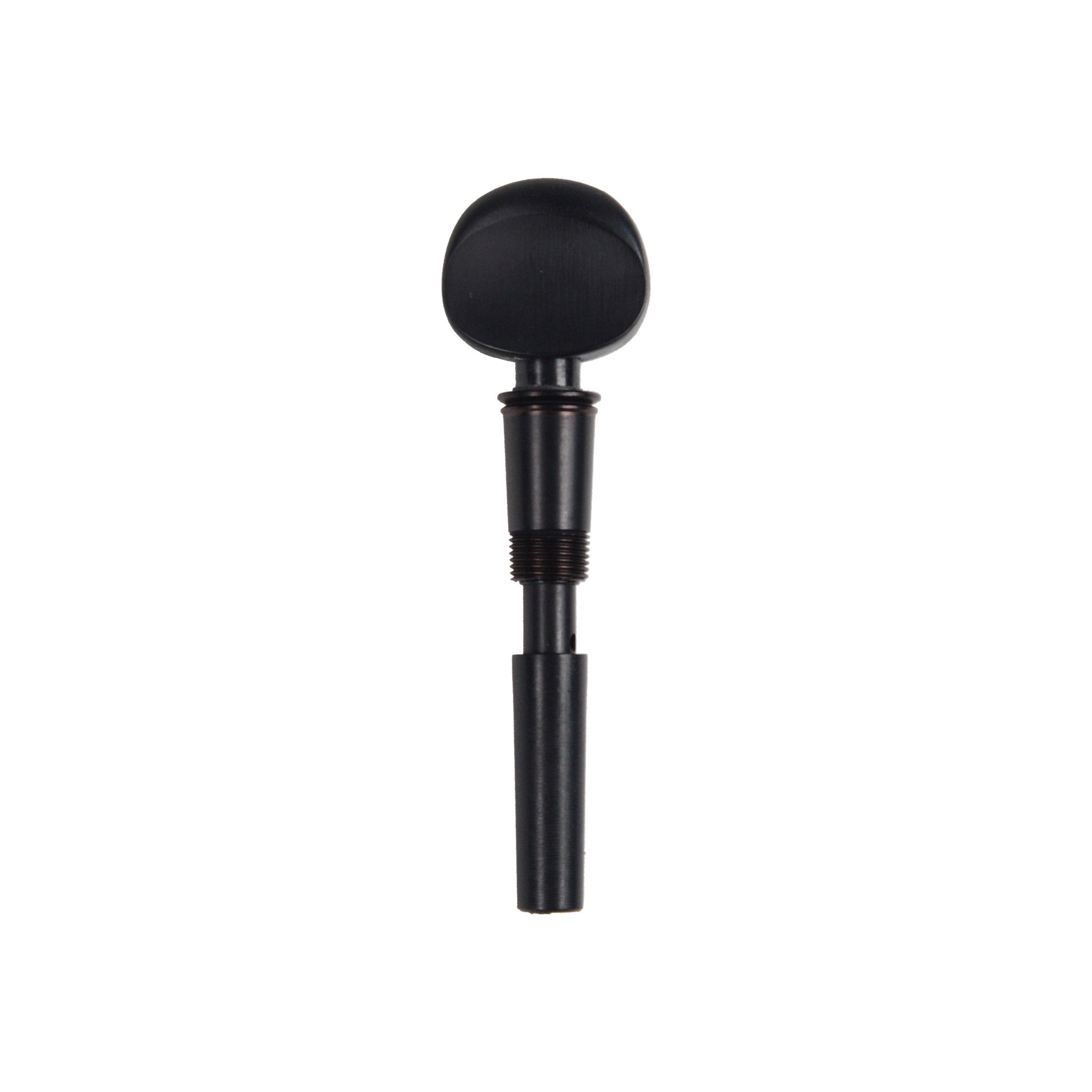

The head of a Perfection peg is made either of ebony, rosewood, or ABS synthetic (the plastic often used in car bumpers). The head is attached to the central sun gear.

Shank

The section just below the head is the shank, which is made of aircraft-grade aluminium, turned, polished and anodized. When the peg is installed the shank is fixed in the peg box and remains stationary.

Planetary gears

Concealed in the shank is a set of planetary gears that are built into and around the central shaft, and the brake which holds the gears in position against the tension of the strings. The gears are fashioned from the same toughened steel used for helicopter rotor-shafts. They are immensely strong and give the pegs their accuracy and control. They are permanently sealed, and lubricated with the grease commonly used for binocular focus assemblies.

Shaft

The shaft sits below the shank and is made of anodised aluminium and Delrin industrial nylon. It's the part with the string hole through the middle. The shaft is driven by the gears and turns as the head is turned.

See the Perfection pegs planetary gear diagram.
